PH128 - R13 HARD - X MSHA

Applicable Standard : SAE J517 - 100R13 / EN 856 - R13/ ISO 3862

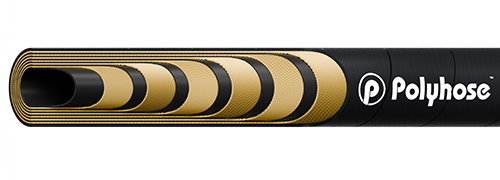

product img

Construction

Inner tube

Black colour, Synthetic rubber resistant to oil and water

Reinforcement

Four high tensile steel wire spiral (DN19-25), Six high tensile steel wire spiral (DN31-51)

Cover

Hard-X Black, Extra abrasion, oil, ozone resistant synthetic rubber.

Application

350 bar super high pressure Hydraulic Lines and hydrostatic transmission lines. Also, suitable for impulse surge lines with more life cycles for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving equipment and machineries / systems

Item
Code
Dash
Size
DN
ID
RI OD
OD
OD
WP
BP
BR/r
W
inch mm inch mm inch mm psi bar psi bar inch mm kg/m
PH128-12 -12 19 3/4 19.2 1.14 29.0 1.26 32.1 5075 350 20300 1400 9.45 240 1.814
PH128-16 -16 25 1 25.7 1.40 35.6 1.52 38.7 5075 350 20300 1400 11.81 300 2.277
PH128-20 -20 31 1.1/4 32.2 1.85 47.0 1.96 49.8 5075 350 20300 1400 16.54 420 4.269
PH128-24 -24 38 1.1/2 38.5 2.17 55.1 2.26 57.3 5075 350 20300 1400 19.69 500 5.747
PH128-32 -32 51 2 51.4 2.67 67.7 2.80 71.1 5075 350 20300 1400 25.20 640 7.852

imgTemperature Range : Continuous: -40°C to +121°C

Impulse Cycles : 500,000 cycles
