PH809 - POLY - DOCK PTFE

Applicable Standard : EN 13765 TYPE 2 : 2010

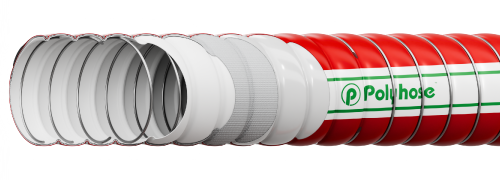

product img

Construction : Heavy duty PP fabric and films with a double layer of PVC coated fabric cover with inner SS 316 and outer wire of galvanized MS and is lined with layer of PTFE Film

Colour : Red with white strip

Application : Heavy duty suction and discharge of bulk chemical in road and rail tanker, dockside and ship to shore

Item
Code
Dash
Size
ID
OD
OD
WP
BR/r
inch mm inch mm psi bar inch mm
PH809-64 -64 4 102.0 4.72 120.0 200 14 15.75 400
PH809-96 -96 6 152.0 6.89 175.0 200 14 22.64 575
PH809-128 -128 8 203.0 9.45 240.0 200 14 31.50 800
PH809-160 -160 10 254.0 12.80 325.0 200 14 39.37 1000

imgTemperature Range : Continuous: -30°C to +150°C
