PH614 - OIL SUCTION & DISCHARGE HOSE W.P. 20 BAR

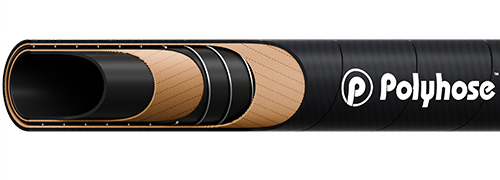

product img

Construction :

Inner tube : Black colour, Synthetic rubber resistant to oil

Reinforcement : Plies of synthetic textile cords with steel helix and two cross anti static copper wires

Cover : Black colour, Synthetic rubber resistant to oil, ozone and abrasion

Application : Mandrel built heavy duty oil suction and discharge hose for handling grades of gasoline or petroleum oils of aromatic content upto 50% from tank truck, in dispensing station etc, during winter/summer seasons and withstands full vacuum

Item
Code
Dash
Size
ID
OD
OD
WP
BP
V
W
inch mm inch mm psi bar psi bar bar kg/m
PH614-12 -12 3/4 19.0 1.14 29.0 300 20 870 60 0.90 0.60
PH614-16 -16 1 25.0 1.38 35.0 300 20 870 60 0.90 0.86
PH614-20 -20 1.1/4 32.0 1.65 42.0 300 20 870 60 0.90 1.03
PH614-24 -24 1.1/2 38.0 1.93 49.0 300 20 870 60 0.90 1.20
PH614-32 -32 2 51.0 2.48 63.0 300 20 870 60 0.90 1.80
PH614-40 -40 2.1/2 63.0 3.03 77.0 300 20 870 60 0.90 2.40
PH614-48 -48 3 76.0 3.54 90.0 300 20 870 60 0.90 2.90
PH614-56 -56 3.1/2 89.0 4.09 104.0 300 20 870 60 0.90 3.60
PH614-64 -64 4 102.0 4.65 118.0 300 20 870 60 0.90 4.10
PH614-80 -80 5 127.0 5.63 143.0 300 20 870 60 0.90 6.80
PH614-96 -96 6 152.0 6.77 172.0 300 20 870 60 0.90 9.00
PH614-128 -128 8 203.0 8.94 227.0 300 20 870 60 0.90 14.00

imgTemperature Range : Continuous: -20°C to +80°C
