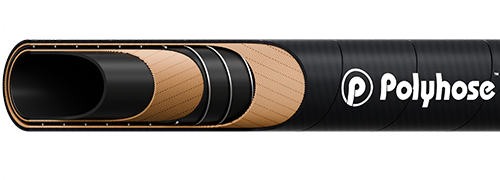

PH609 - THERMOPLASTIC LINED PAINT S & D HOSE 10 BAR
Construction
Inner tube
Black colour,Synthetic rubber with Thermoplastic liner
Reinforcement
Plies of synthetIc textIle cords with steel helix and two cross antistatic copper wires
Cover
Black synthetic rubber resistant to ozone, weather and abrasion
Application
For suction and conveying paint and allied chemicals
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BP
|
V
|
W
|
||||
| inch | mm | inch | mm | psi | bar | psi | bar | bar | kg/m | ||
| PH609-08 | -08 | 1/2 | 12.0 | 0.87 | 22.0 | 150 | 10 | 450 | 30 | 0.90 | 0.45 |
| PH609-12 | -12 | 3/4 | 19.0 | 1.22 | 31.0 | 150 | 10 | 450 | 30 | 0.90 | 0.69 |
| PH609-16 | -16 | 1 | 25.0 | 1.46 | 37.0 | 150 | 10 | 450 | 30 | 0.90 | 0.85 |
| PH609-20 | -20 | 1.1/4 | 32.0 | 1.73 | 44.0 | 150 | 10 | 450 | 30 | 0.90 | 1.10 |
| PH609-24 | -24 | 1.1/2 | 38.0 | 1.97 | 50.0 | 150 | 10 | 450 | 30 | 0.90 | 1.20 |
| PH609-32 | -32 | 2 | 51.0 | 2.48 | 63.0 | 150 | 10 | 450 | 30 | 0.90 | 1.60 |
Temperature Range : Continuous: -40°C to +80°C
