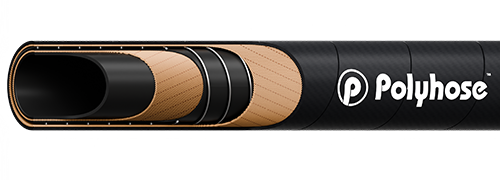

PH601 - WATER SUCTION & DISCHARGE HOSE W.P. 10 BAR

product img

Construction :

Inner tube : Black colour, Synthetic rubber resistant to water

Reinforcement : Plies of synthetic textile cords with steel helix

Cover : Black colour, Synthetic rubber, wrapped type, abrasion water resistant

Application : Mandrel built heavy duty suction and discharge hose for handling of water, inert fluid, sewerages and waste water, where optimum flexibility is required

Cover Options
PH640 : Both inner and outer cover EPDM
Item
Code
Dash
Size
ID
OD
OD
WP
BP
V
W
inch mm inch mm psi bar psi bar bar kg/m
PH601-12 -12 3/4 19.0 1.14 29.0 150 10 435 30 0.90 0.69
PH601-16 -16 1 25.0 1.38 35.0 150 10 435 30 0.90 0.80
PH601-20 -20 1.1/4 32.0 1.65 42.0 150 10 435 30 0.90 0.96
PH601-24 -24 1.1/2 38.0 1.89 48.0 150 10 435 30 0.90 1.11
PH601-32 -32 2 51.0 2.44 62.0 150 10 435 30 0.90 1.50
PH601-40 -40 2.1/2 63.0 2.95 75.0 150 10 435 30 0.90 1.96
PH601-48 -48 3 76.0 3.46 88.0 150 10 435 30 0.90 2.40
PH601-56 -56 3.1/2 89.0 4.02 102.0 150 10 435 30 0.90 2.90
PH601-64 -64 4 102.0 4.57 116.0 150 10 435 30 0.90 3.30
PH601-80 -80 5 127.0 5.55 141.0 150 10 435 30 0.90 5.20
PH601-96 -96 6 152.0 6.73 171.0 150 10 435 30 0.80 6.70
PH601-128 -128 8 203.0 8.78 223.0 150 10 435 30 0.70 11.20

imgTemperature Range : Continuous: -25°C to +70°C
