PH555 - NON CONDUCTIVE CARBON FREE HOSE

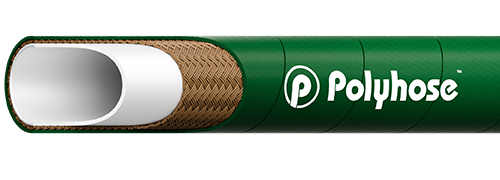

product img

Construction

Inner tube

Cream colour, Synthetic rubber

Reinforcement

High Tensile Fiber Yarn Braid

Cover

Red or Green Colour, Synthetic Rubber Cover resistant to oil, weather and abrasion

Application

Electrical Coolant application; Conveying coolants in Furnace, specially designed for Low Leakage Current, leakage current levels less than 15 Micro Amps at 5000V DC

Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH555-06 -06 10 3/8 9.7 0.75 19.0 290 20 1015 70 3.9 100 0.339
PH555-08 -08 12 1/2 12.7 0.85 21.5 290 20 1015 70 3.9 100 0.367
PH555-10 -10 16 5/8 16.0 1.02 26.0 290 20 1015 70 4.5 115 0.534
PH555-12 -12 19 3/4 20.0 1.22 31.0 290 20 1015 70 4.9 125 0.731
PH555-16 -16 25 1 26.0 1.50 38.0 290 20 1015 70 5.9 150 0.941
PH555-20 -20 31 1.1/4 32.5 1.77 45.0 290 20 1015 70 7.9 200 1.355
PH555-24 -24 38 1.1/2 39.0 2.09 53.0 290 20 1015 70 8.9 225 1.816
PH555-32 -32 51 2 52.0 2.56 65.0 290 20 1015 70 11.8 300 2.476
PH555-48 -48 76 3 76.0 3.68 93.5 290 20 1015 70 17.7 450 3.229
PH555-64 -64 100 4 100.0 4.53 115.0 290 20 1015 70 23.6 600 3.305

imgTemperature Range : Continuous: -40°C to +100°C
