PH536 - FUEL/CNG HOSE FOR AUTOMOTIVE APPLICATION

Applicable Standard : SAE J30 - R6 / IS 15722 Class -1, Type-2

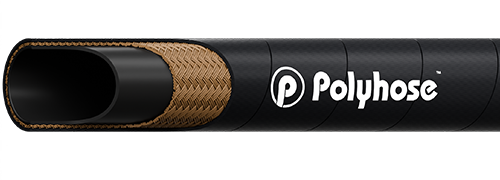

product img

Construction :

Inner tube : Black colour, Synthetic rubber resistant to oil and fuel

Reinforcement : Textile reinforcement

Cover : Black colour, Synthetic rubber resistant to abrasion and weather. Available in Wrap and Smooth finish*

Application : Designed for use in motor vechicles with CNG installations

Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH536-03 -03 05 3/16 4.7 0.41 10.3 315 21.5 725 50 2.0 50 0.094
PH536-04 -04 06 1/4 6.4 0.50 12.7 315 21.5 725 50 2.6 65 0.130
PH536-05 -05 08 5/16 8.0 0.56 14.3 315 21.5 725 50 3.0 75 0.155
PH536-06 -06 10 3/8 9.5 0.63 15.9 315 21.5 725 50 3.0 75 0.183
PH536-08 -08 12 1/2 12.7 0.78 19.8 315 21.5 725 50 3.9 100 0.264
PH536-10 -10 16 5/8 15.9 0.94 23.8 315 21.5 725 50 4.9 125 0.302
PH536-12 -12 19 3/4 19.0 1.13 28.6 315 21.5 725 50 5.9 150 0.372
PH536-16 -16 25 1 25.4 1.37 34.9 315 21.5 725 50 7.9 200 0.545

imgTemperature Range : Continuous: -40°C to +100°C

*Smooth cover available only upto size 1"
