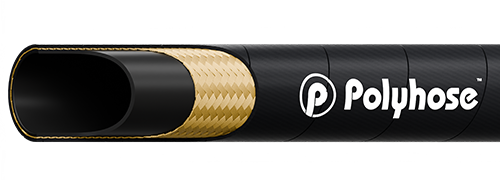

PH442 - FUEL DISPENSING HOSE - HARD WALL

Applicable Standard : EN 1360 Type 3

product img

Construction :

Inner tube : Black colour, Synthetic rubber resistant to petrol and diesel fuel

Reinforcement : Single steel wire braid

Cover : Black Colour, synthetic rubber resistant to fuel and weather. Available in Wrap and Smooth finish*, Colour option Blue and Green available on request.

Application : Petrol and diesel fuel dispensing lines of pressure 235 psi

Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH442-10 -10 16 5/8 16.0 1.00 25.3 235 16 700 48 3.1 80 0.590
PH442-12 -12 19 3/4 19.0 1.07 27.2 235 16 700 48 3.9 100 0.661
PH442-14 -14 21 7/8 21.0 1.22 31.0 235 16 700 48 5.1 130 0.720
PH442-16 -16 25 1 25.0 1.30 33.0 235 16 700 48 5.9 150 0.657

imgTemperature Range : Continuous: -30°C to +55°C

Electrical resistance max : 1 X 10² ohms

*Smooth cover available only upto size 1"
