PH142 - 2 WB - 09 Series

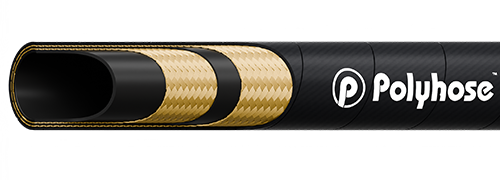

product img

Construction :

Inner tube : Black colour, synthetic rubber resistant to oil & water

Reinforcement : Double high tensile wire braids

Cover : Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone.

Application : High Pressure hydraulic lines 210 Bar to 400 Bar. For High pressure hydraulic systems. Available in Wrap and Smooth finish*

Cover Options
PH142: MSHA
Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH142-06 -06 10 3/8 9.5 0.75 19.1 5800 400 23200 1600 5.1 130 0.571
PH142-08 -08 12 1/2 12.7 0.87 22.2 5005 345 20010 1380 7.1 180 0.689
PH142-10 -10 16 5/8 16.0 1.00 25.4 4350 300 17400 1200 7.9 200 0.811
PH142-12 -12 19 3/4 19.0 1.16 29.4 3845 265 15370 1060 9.4 240 1.029
PH142-16 -16 25 1 25.4 1.48 37.5 3045 210 12180 840 11.8 300 1.503

imgTemperature Range : Continuous: -40°C to +100°C

*Smooth cover available only upto size 1"
