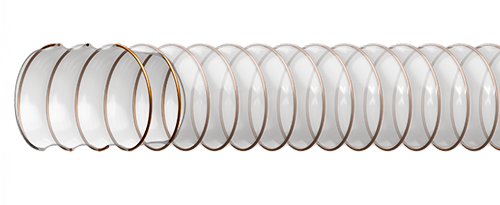

POLYURETHANE DUCTING - STANDARD

product img

Construction :

Application : Suction & transport of abrasive solids, liquids, fine grained particles, such as dust and powder. Used in extraction of oil mist, paper & textile fibers

Wall :Polyester Polyurethane

Spiral : Spring Steel Wire

Properties : Extremely flexible, Light in weight, Microbe - resistance, Good chemical resistance, Good UV and ozone resistance, Anti static if connected with helical wire

Note : Length upto 20 meters. Also special sizes are available on request
Item
Code
ID
WT
VP
BR/r
W
inch mm mm bar mm kg/m
PH032035AANT 1.1/4 32 0.35 0.25 24 0.164
PH038035AANT 1.1/2 38 0.35 0.25 29 0.167
PH040035AANT 40 0.35 0.25 30 0.172
PH045035AANT 45 0.35 0.20 33 0.187
PH051035AANT 2 51 0.35 0.20 37 0.210
PH060035AANT 60 0.35 0.16 45 0.246
PH063035AANT 2.1/2 63 0.35 0.14 47 0.255
PH065035AANT 65 0.35 0.14 49 0.268
PH070035AANT 2.3/4 70 0.35 0.14 51 0.288
PH076035AANT 3 76 0.35 0.10 55 0.312
PH080035AANT 80 0.35 0.10 59 0.327
PH090035AANT 3.1/2 90 0.35 0.10 67 0.367
PH102040AANT 4 102 0.40 0.09 70 0.457
PH110040AANT 110 0.40 0.08 75 0.492
PH120040AANT 120 0.40 0.08 85 0.536
PH127040AANT 5 127 0.40 0.07 89 0.566
PH130040AANT 130 0.40 0.06 92 0.579
PH140040AANT 5.1/2 140 0.40 0.06 95 0.623
PH150040AANT 150 0.40 0.06 105 0.688
PH152040AANT 6 152 0.40 0.06 107 0.701
PH160045AANT 160 0.45 0.06 109 0.859
PH180045AANT 7 180 0.45 0.05 120 0.963
PH200045AANT 7.7/8 200 0.45 0.05 135 1.068
PH220045AANT 220 0.45 0.04 150 1.100
PH250050AANT 10 250 0.50 0.04 165 1.285
PH279050AANT 11 279 0.50 0.03 185 1.432
PH300050AANT 12 300 0.50 0.03 205 1.538
PH350050AANT 14 350 0.50 0.02 240 1.792
PH400050AANT 16 400 0.50 0.02 272 2.045
PH450050AANT 18 450 0.50 0.01 305 2.331
PH500050AANT 20 500 0.50 0.01 340 2.588
PH600050AANT 24 600 0.50 0.01 385 3.101

imgTemperature Range : Continuous: -40°C to +90°C
