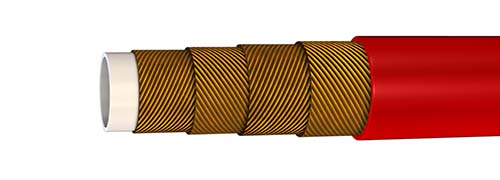

PH904R - 4 SPIRALS OF HIGH TENSILE STEEL WIRE

product img

Construction

Inner tube

Polyamide (PA)

Reinforcement

4 Spirals of high tensile steel wire

Cover

Polyamide (PA) - Red

Application

Water Blast: Heat exchanger tube cleaning, surface preparation(Concrete removal, surface cleaning of buildings, paint removal), tank and vessal cleaning, ultra high pressure waterjet cutting and hydro demolition(cutting and demolition of armoured concrete, pipelines, paper or steel) Hydraulics: Pressure test equipment (valves, tooling and control panels), hydraulic tools (instrumentation packages for gauges, control of service equipment, hydraulic jacks, hydraulic tools) Oil and Gas: Grease injection, chemical injection, control of subsea hydraulic components, nitrogen service, gaseous media handling.

Note : Production related variations of Burst Pressure of upto 10% possible. Indicated working pressure refers to hose only. Depending on the end connectors used, the permited working pressure of hose assembly may be less
Item
Code		 DN
ID
OD
OD
WP
BP
BR/r
W
inch mm mm psi bar psi bar mm g/m
PH904R-08 12 1/2 12.8 22 20300 1400 50750 3500 200 900

WJTA-IMCA Color Coding Scheme for Pressure Hoses - Maximum Working Pressure Applicable


10,000 PSI / 690 Bar

15,000 PSI / 1034 Bar

20,000 PSI / 1379 Bar

30,000 PSI / 2068 Bar

40,000 PSI / 2758 Bar

55,000 PSI / 3792 Bar

imgTemperature Range : Continuous: -30°C to +60°C
