PH674 - SHOT BLASTING HOSE W.P. 12 BAR - PH1 (PREMIUM ABRASION)

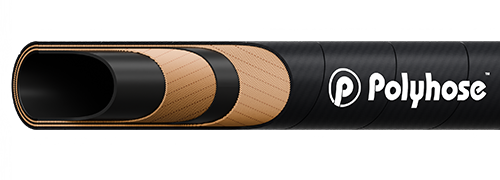

product img

Construction

Inner tube

Black colour, Synthetic and natural rubber blend highly resistant to abrasion.

Reinforcement

Plies of synthetic textile cords with two cross antistatic copper wires

Cover

Black colour, Synthetic rubber resistant to ozone, weather and abrasion

Application

Suitably designed extreme long service heavy duty hose for use in sand, metal grits and foundary waste with conductive rubber compound to ensure static electricity dissipation with average abrasion loss of tube 35mm3 according to ISO 4649

Item
Code
Dash
Size
ID
OD
OD
WP
BP
W
inch mm inch mm psi bar psi bar kg/m
PH674-08 -08 1/2 12.7 1.06 27.0 175 12 525 36 0.61
PH674-12 -12 3/4 19.0 1.34 34.0 175 12 525 36 0.80
PH674-16 -16 1 25.0 1.57 40.0 175 12 525 36 0.97
PH674-20 -20 1.1/4 32.0 1.89 48.0 175 12 525 36 1.32
PH674-24 -24 1.1/2 38.0 2.13 54.0 175 12 525 36 1.45
PH674-32 -32 2 51.0 2.87 73.0 175 12 525 36 2.20
PH674-40 -40 2.1/2 64.0 3.35 85.0 175 12 525 36 3.26
PH674-48 -48 3 76.0 3.94 100.0 175 12 525 36 3.90
PH674-64 -64 4 102.0 4.96 126.0 175 12 525 36 4.40

imgTemperature Range : Continuous: -30°C to +70°C
