PH305 - SEWER JET - 2800 PSI

product img

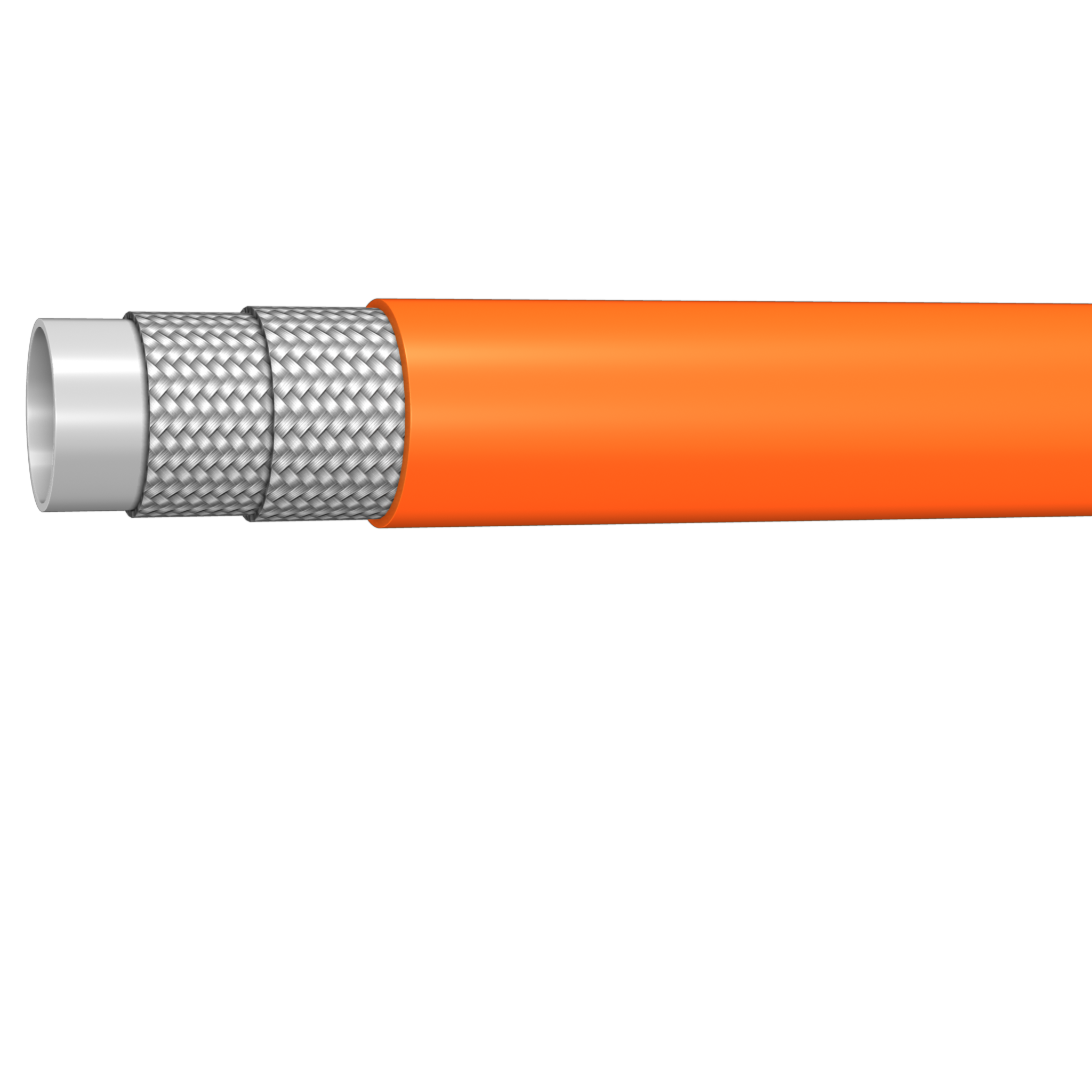

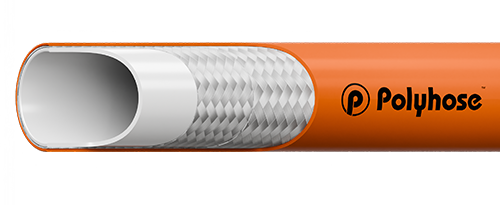

Construction :

Inner tube : Special Thermoplastic Elastomer

Reinforcement : One or two braids of Synthetic Fiber and one special braid of synthetic fiber armoring

Cover : Polyurethane, Orange Colour

Application : Ideal for those tough jobs with tight bends. Abrasion and cut resistant cover. Bonded construction to resist kinking. Design includes "armoring", enhancing flexibility and wear life. Cover material specially compounded to resist microbiological degradation. Available in long lengths

Note : Special colours available on request
Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm g/m
PH305-12 -12 20 3/4 19.0 1.160 29.5 2800 190 7000 475 4.7 120 440
PH305-16 -16 25 1 25.4 1.460 37.1 2800 190 7000 475 5.9 150 650
PH305-20 -20 32 1.1/4 31.8 1.840 46.7 2800 190 7000 475 9.8 250 985

imgTemperature Range : Continuous: -40°C to +60°C
