PH208 - 1ST HARD - X MSHA

Applicable Standard : EN 853 - 1ST

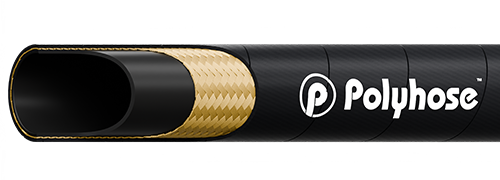

product img

Construction

Inner tube

Black Color, Synthetic rubber resistant to oil and water

Reinforcement

Single steel wire braid

Cover

Hard-X Black, Extra abrasion, oil, ozone resistant synthetic rubber. Available in Wrap and Smooth finish*

Application

Medium Pressure Hydraulic Lines 35 to 40 bar. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agriculture, Earthmoving & Material handling equipment and machineries/systems

Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH208-32 -32 51 2 51 2.64 67.0 580 40 2320 160 24.8 630 2.801
PH208-48 -48 76 3 76 3.62 92.0 510 35 2030 140 35.4 900 3.936

imgTemperature Range : Continuous: -40°C to +100°C

Intermittent : +120°C

*Smooth cover available only upto size 1"
