PH147 - R6

Applicable Standard : SAE J517 - 100R6

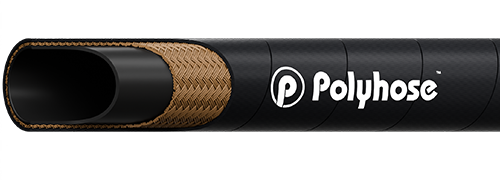

product img

Construction

Inner tube

Black colour, synthetic rubber resistant to oil and water

Reinforcement

Textile reinforcement

Cover

Black colour, synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*

Application

Very low pressure and impulse hydraulic lines 15 to 35 bar for use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for Agriculture, Stationary equipment and hydraulic systems

Cover Options
PH247 : MSHA
Temperature Usage Options
PH164 : High temperature -40°C to +135°C
PH264 : High temperature MSHA cover -40°C to +135°C
PH227 : Ultra High temperature MSHA cover -40°C to +150°C
Other Options
PH165: Both inner and outer cover EPDM
Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH147-03 -03 05 3/16 4.8 0.44 11.1 510 35 2030 140 2.0 50 0.119
PH147-04 -04 06 1/4 6.4 0.50 12.7 435 30 1670 115 2.6 65 0.141
PH147-05 -05 08 5/16 8.0 0.56 14.3 435 30 1670 115 3.0 75 0.164
PH147-06 -06 10 3/8 9.5 0.63 15.9 435 30 1670 115 3.0 75 0.175
PH147-08 -08 12 1/2 12.7 0.78 19.8 435 30 1670 115 3.9 100 0.285
PH147-10 -10 16 5/8 15.9 0.91 23.0 365 25 1450 100 4.9 125 0.336
PH147-12 -12 19 3/4 19.1 1.05 26.6 365 25 1235 85 5.9 150 0.413
PH147-14 -14 22 7/8 22 1.22 31.0 290 20 1160 80 7.9 200 0.558
PH147-16 -16 25 1 25.6 1.33 33.8 220 15 870 60 7.9 200 0.605
PH147-20 -20 31 1.1/4 32.2 1.58 40.2 290 20 1160 80 9.8 250 0.739
PH147-24 -24 38 1.1/2 38.0 2.01 51.0 220 15 870 60 15.7 400 1.430

imgTemperature Range : Continuous: -40°C to +100°C

*Smooth cover available only upto size 1"
